LO1001
C-Band Local Oscillator
Radars & Electronic Warfare
Satellite Systems
Low-phase-noise VCO for C-band transceivers with a ceramic-resonator oscillator (-160 dBc/Hz floor) and high output power removing the need for extra LO drive. ~5 W.
Photos

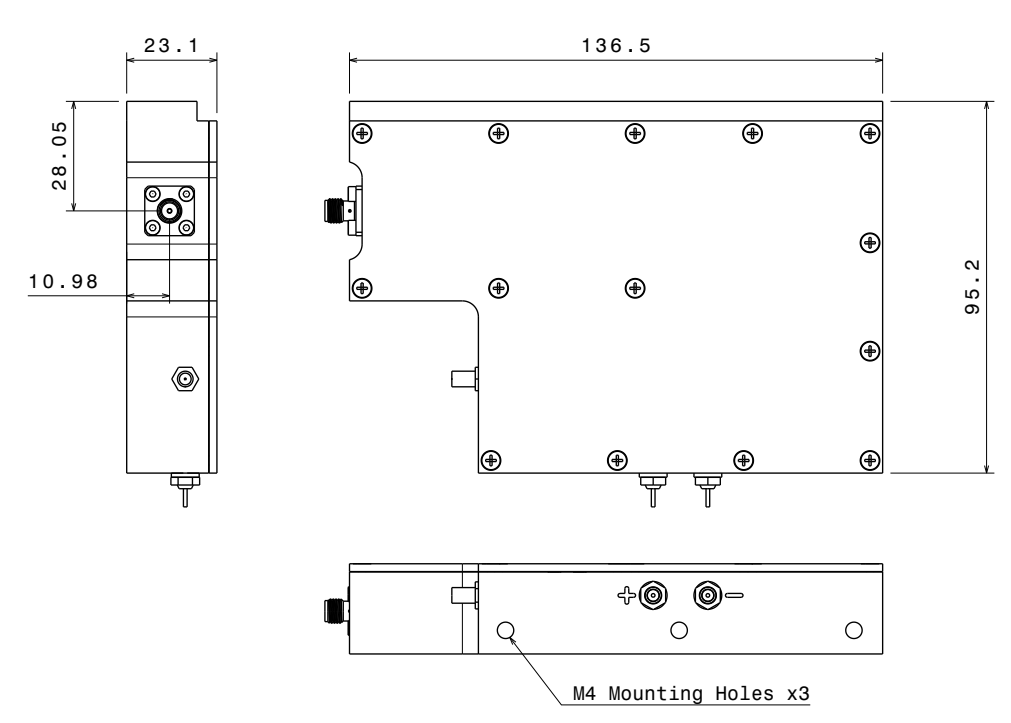

Drawings
General
| Output Frequency | 5–6 GHz |
| Center Frequency | C-Band |
| Tuning Sensitivity | 60 MHz/V |
| Frequency Band | C-Band |
Power
| Output Power | 16 dBm typ |
| DC Consumption | 5 W max |
Noise
| Phase Noise | -100 dBc/Hz @10 kHz; -142 dBc/Hz @1 MHz; -157 floor |
| Harmonics | -25 dBc |
Environmental
| Operating Temp | 5 °C to 65 °C |
