Mixers
PZ0228
4-19 GHz RF Mixer
Radars & Electronic Warfare
Test & Measurement
VSAT / Microwave Radios
High-performance microwave double-balanced passive mixer for up/downconversion, 4–19 GHz.
Frequency response
Measured S-parameters — interactive.
S11
→
–
Curve modelled from published specifications — indicative, not a measured trace.
Photos

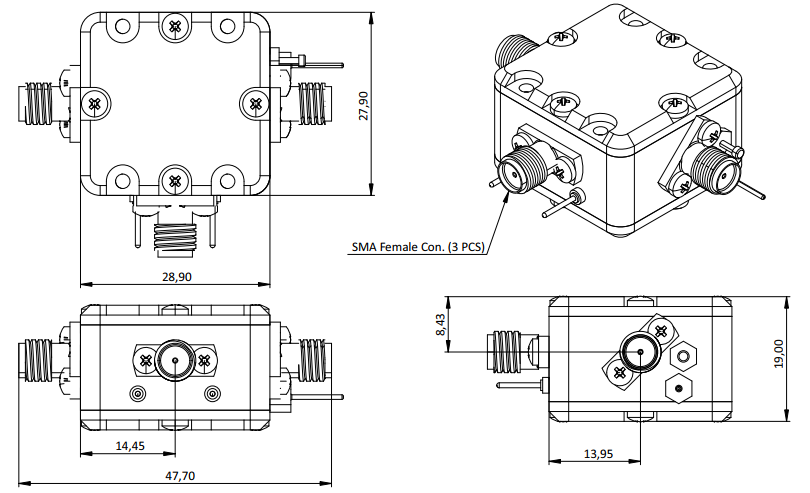

Drawings
General
| RF Frequency Range | 4–19 GHz |
| Center Frequency | 4–19 GHz |
| LO Frequency Range | 1–20 GHz |
| IF Frequency Range | 500–9000 MHz |
| Frequency Band | X-Band |
Power
| LO Input Power | ±6 dBm |
| Supply Voltage | 6–7.5 V |
Passband
| RF Return Loss | >9 dB |
Environmental
| Operating Temp | -40 °C to +105 °C |
