PZ0504
6-12 GHz RF Switch Matrix
Radars & Electronic Warfare
Test & Measurement
VSAT / Microwave Radios
6–12 GHz RF switch matrix of 2 SP4T and 4 SPDT. 5.7 dB IL @12 GHz, 50 dB isolation, RS485 control. <0.1 W @7V.
Frequency response
Measured S-parameters — interactive.
S11
→
–
Curve modelled from published specifications — indicative, not a measured trace.
Photos

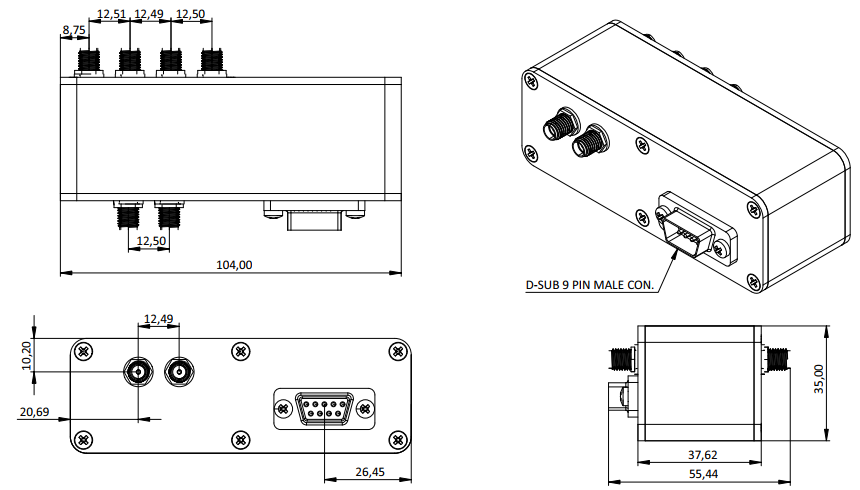

Drawings
General
| Frequency Range | 6–12 GHz |
| Center Frequency | 6–12 GHz |
| Switching Speed | 4 µs |
| Frequency Band | X-Band |
Passband
| Insertion Loss | 3.3 dB @ 6 GHz / 4.2 dB @ 9 GHz / 5.7 dB @ 12 GHz |
Stopband
| Isolation (worst case) | 57 dB @6GHz; 50 dB @12GHz |
Power
| Supply Voltage | 6–20 V |
